Living Roof Design

History

Although anthropologists trace grass and sod roofs back to prehistoric times, the earliest documented rooftop gardens appeared on the ziggurats of ancient Mesopotamia. Built by the civilizations of the Sumerians, Akkadians, Babylonians, and Assyrians between 2200 and 500 BCE, these monumental, tiered structures embodied the earliest green roof concepts. In northern Scandinavia, sod roofs became a traditional architectural feature, providing insulation and protection from the elements. The modern green roof movement began in Germany during the 1960s, focusing on environmental benefits and sustainable urban development. Today, about 10% of German rooftops are greened, and the practice has spread worldwide, enhancing urban biodiversity, improving aesthetics, and reducing energy use.

Living roofs are increasingly valued for their contributions to community well-being. Toronto leads North America with the first living roof by-law and the highest adoption rate, enabling the city to manage up to 40% of its stormwater. Other U.S. cities—including Philadelphia, Washington, D.C., New York, Boston, Chicago, and San Francisco—have introduced similar initiatives. San Francisco’s Better Roofs Ordinance requires new buildings to include either 15% solar panels or 30% living roofs. At the federal level, the Public School Green Rooftop Program (H.R. 1863) allocates $500 million to support installation and maintenance of living roofs on K–12 public schools in underserved communities. In Europe, countries such as Switzerland and Austria have gone further, developing dedicated standards and codes of practice for green roofs.

Types

Living roofs can be built in two main ways: built-in-place or modular:

Built-in-Place: The growing medium and plants are installed directly on the roof. This method offers greater flexibility in shape and design but requires more time and higher cost. It is ideal for larger or more complex structures where specific plant selection is important.

Modular: Pre-vegetated trays are assembled on the roof. Modular systems install faster, are more cost-effective, and work well for buildings with limited roof access. However, they offer less customization and are not well-suited for large or irregular roof shapes.

Living roofs can also be categorized by soil depth and plant type:

Intensive: Also called a “roof garden,” this type features a deep soil layer that can support a wide variety of vegetation, including perennials, annuals, crops, shrubs, and small to medium trees. Intensive roofs require more maintenance and irrigation but provide excellent insulation, improved air quality, stormwater mitigation, and accessible garden or amenity space. Soil depths range from 10–24 inches, with a load-bearing capacity of 100–150 lbs/sf.

Semi-Intensive: This type has a moderate soil layer that supports a mix of perennials, ground covers, and limited dwarf shrubs. Soil depths range from 6–10 inches, with a load-bearing capacity of 50–100 lbs/sf.

Extensive: Featuring a shallow soil layer, extensive roofs are low-maintenance and planted with drought-tolerant vegetation such as sedums, mosses, grasses, herbs, and small perennials. They require minimal irrigation and upkeep. Soil depths range from 3–6 inches, with a load-bearing capacity of 10–50 lbs/sf.

Benefits

Durability & Value: Extend roof lifespan by up to 300%, reducing replacement costs and landfill waste.

Energy Efficiency: Lower indoor temperatures by as much as 18°F, cut cooling demand by 25%, and reduce heat loss by 26%. Pairing with solar panels can boost performance by up to 15%.

Comfort & Health: Improve indoor air quality, absorb urban noise, and reduce air pollution by up to 20% (particulates by 6%, SO₂ by 37%).

Climate & Resilience: Helps reduce urban heat island effect (e.g., asphalt 158°F, PVC 101°F, living roof 90°F in Minneapolis) and improves fire safety with well-irrigated, fire-resistant plants, unlike bitumen asphalt shingles, which can catch fire.

Water Management: Retain 70–80% of rainfall compared to 20% on standard roofs; delay runoff, capture the first 5 mm of storms, and reduce combined sewer overflows (CSOs).

Biodiversity & Food: Support urban agriculture, create habitats, enhance biodiversity, and contribute to community well-being.

Aesthetics & Space: Enhance building appearance and create accessible green amenity spaces with pleasant aromas.


Recognition & Incentives: Qualify for zoning incentives such as boosted FAR (floor area ratio) and reduced setbacks, potentially fast-track permit approvals, and earn up to 15 LEED credits depending on design and integration.

Options

Ground Covers: Low-growing plants such as moss, creeping thyme, clover, and silver carpet that provide good coverage, shallow roots, drought tolerance, and require minimal maintenance.

Succulents: Sedums, agave, aloe, and sempervivum offer low-maintenance and resilient options for harsh, arid conditions. Store water in leaves or stems and feature shallow roots.

Herbaceous Grasses: Deep-rooted species such as bluestem, switchgrass, lovegrass, prairie dropseed, muhly, feather reed grass, and blue oat grass. They reduce stormwater runoff, aid in erosion control, insulate buildings, lower ambient temperatures, and support biodiversity (e.g., insects, birds).

Flowers: Perennials (e.g., coneflowers, black-eyed Susan, lavender, daylilies) regrow annually; annuals (e.g., zinnias, marigolds) complete their life cycle in one season. Add color, fragrance, and attract pollinators (bees and butterflies).

Herbs: Creeping rosemary, thyme, balm, mint, basil, and parsley. Provide culinary and aromatic benefits.

Rooftop Farms: Produce crops such as tomatoes, lettuce, peppers, and berries. Optimize urban space, though higher maintenance is required.

Fire-Resistant Vegetation: Strategically planted species that minimize fire risk and create protective buffer zones.

Next-Generation Beehives: Innovative, user-friendly hives like Flow Hive, BEEcosystem, or B-Box Hive. Support local bee populations and honey production with minimal effort—no need for smoking bees.

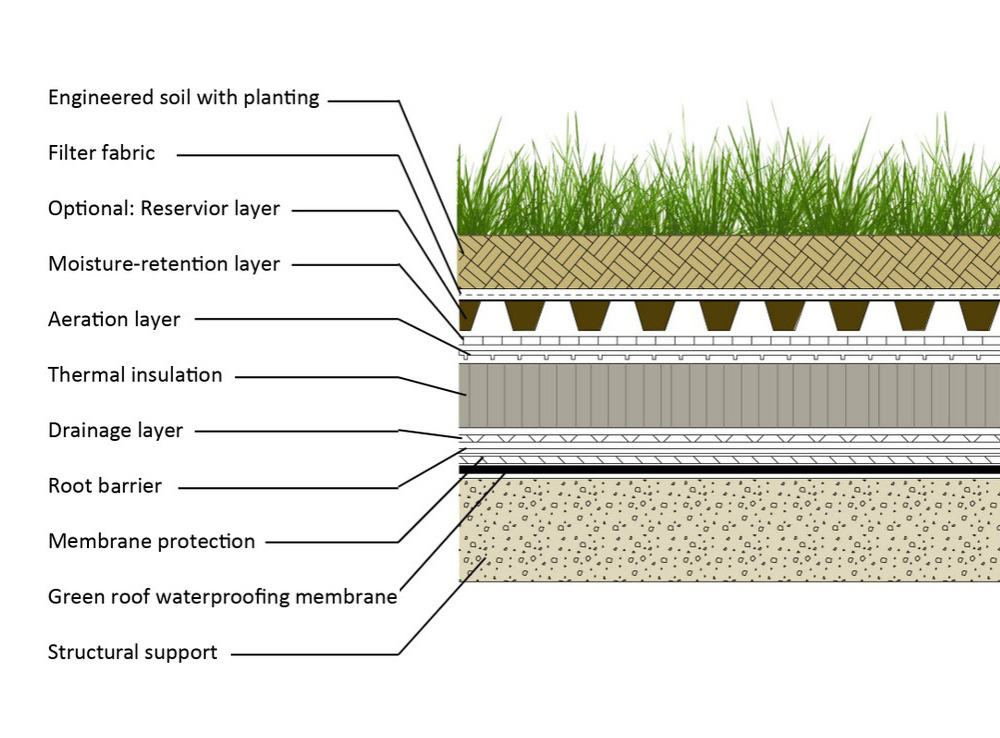

Layers

Vegetation: A diverse mix of plant species, including trees, shrubs, grasses, flowering plants (e.g., wildflowers), and succulents (e.g., sedum mix blankets).

Growing Media: Living roofs use a lightweight, engineered growing medium instead of natural soil. Unlike traditional soil, which is rich in organic matter and heavy, growing media is designed for drainage, aeration, moisture retention, and stability. It typically includes materials like pumice, expanded clay, lava rock, ROCKWOOL, or mineral wool blankets (also called green rolls), with a pH of 6.5–8.0 to support plant health while staying lightweight and low in organic content—minimizing shrinkage and nutrient loss. Standards like Germany’s FLL Guidelines distinguish this media from natural soil due to weight and consistency.

Soil in Natural Landscapes:
 In ground-level landscapes, healthy plant growth depends on soil texture, structure, pH, and organic matter.

Installation Tip:
 For rooftop media placement, boom lifts with super sacks can offer better control and access than blower trucks on complex sites.

Filter: Geotextile fabrics, including fleece, coco liner, and sphagnum moss, serve as a barrier between the growing medium and the drainage layer. Their purpose is to prevent the migration of fine soil that can clog the drainage system.

Drainage: Gravel, dimpled plastic sheets, and ribbed fabric laminates divert excess water away from the growing medium and vegetation, preventing roof damage.

Water and Nutrient Reservoirs: Utilizing recycled, non-degradable materials such as PP or polyester fabrics, this layer provides additional water and nutrient storage to support plant growth. While the drainage and water and nutrient reservoir layers may serve similar purposes, they are typically separate layers.

Tough Protection Mat: Typically weighing between 500 to 900 g/m², this layer made of HDPE or HDPET provides additional protection for the roof membrane and insulation layers.

Root Barrier: Protects the roof from roots penetrating the surface. Typically HDPE or HDPP and over 2.5 mm thick.

Waterproofing Membrane: Typically made of synthetic materials like PVC, EPDM, or butyl rubber (IIR), this layer provides a waterproof barrier to protect the roof from water damage and leaks.

Roof Insulation: Typically rigid foam board or spray foam that provides additional thermal insulation to the building.

Roof Structure: The structural deck (concrete, steel, or wood) supports the living roof by transferring loads to beams, columns, or load-bearing walls. Additional reinforcement may be required, and a licensed structural engineer should assess the roof’s capacity to safely bear the living roof’s weight.

Maintenance

Routine maintenance is key to the longevity and visual appeal of a living roof. This includes:

Sedums, a low-maintenance succulent ideal for green roofs, prefer well-draining soil, minimal watering, and low fertility conditions. During the active growing season (spring and summer), water every 2–4 weeks, depending on weather and roof exposure. In the dormant season (fall and winter), watering can be reduced significantly. Sedums aren’t heavy feeders and tolerate poor soil, but a slow-release fertilizer once or twice a year can boost growth and flowering.

Installation Costs

Installation costs depend on factors like roof size, accessibility, brand selection, warranty options, and whether the project is residential or commercial. Incorporating greenery can also offer financial benefits: outdoor improvements such as landscaping, irrigation, walkways, or living roofs may increase your property’s adjusted cost basis, potentially reducing capital gains tax when the property is sold.

Design Costs

Living Roof Firms

Biosolar

Biosolar roofs represent an innovative technology that combines vegetation with solar panels, creating a mutually beneficial relationship. The plants leverage evapotranspiration to create a cool microclimate that reduces the temperature of the panels by providing shade and evaporative cooling through transpiration. While the condensation that forms on the panels provides moisture for the plants.

Studies have demonstrated that biosolar roofs can boost the efficiency of solar panels by up to 15% under certain conditions. This prevents overheating, which can impair the performance of solar panels. In addition, the plants help to minimize the accumulation of dust and debris on the panels, which can also impact efficiency. Typically, photovoltaic (PV) systems function optimally at temperatures below 90°F. However, temperatures exceeding 110°F can result in a 10%-25% reduction in solar power output.
